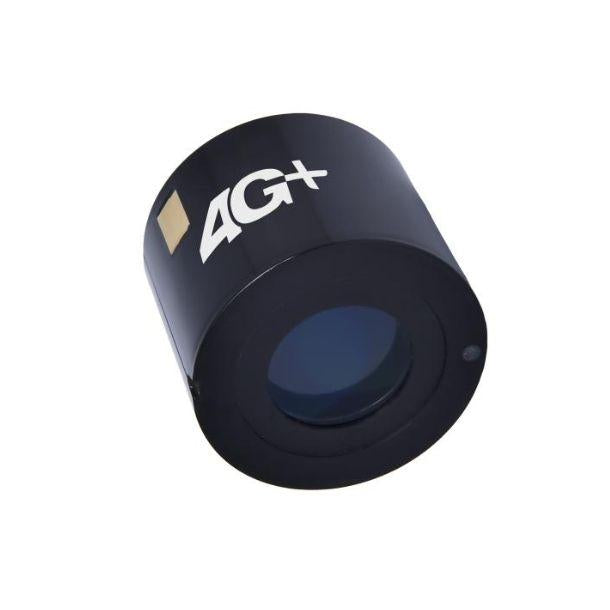

Exosens 4G+ Image Intensifier Tube

P45 white backorders: If out of stock, you can still order. Please allow 4–5 weeks for dispatch. P43 green remains available by enquiry only.

Manufacturer: Exosens (formerly Photonis).

Exosens 4G+ is a premium image intensifier tube designed for exceptional performance across challenging and rapidly changing low-light environments.

Positioned above 4G, the 4G+ range combines a minimum Figure of Merit (FOM) of 2300 with very fast auto-gating, extended spectral sensitivity and a reduced halo around bright light sources. This helps preserve image detail and contrast in both extremely dark and dynamically lit conditions.

Key features

• Minimum FOM: 2300
• Minimum signal-to-noise ratio: 30
• Minimum centre resolution: 72 lp/mm
• High-light resolution: 55 lp/mm
• Very fast auto-gating
• Extended spectral range: 350–1064 nm
• Reduced halo around bright light sources
• 18 mm 10160-style, three-contact EGAC tube format
• P43 green or P45 white phosphor
• EGAC supplied as standard, configured for 180 kΩ
• Manufactured in the EU

Manufacturer brochure

Download the current Exosens 4G+ product brochure (PDF).

Choosing your tube

Select P45 white phosphor above to view pricing and availability. P43 green phosphor is available by enquiry only. Both options use the 18 mm 10160-style, three-contact EGAC format. Please confirm compatibility with your night-vision device before ordering, or contact Deep Dark if you need assistance.

Tube format and gain control

This is an 18 mm 10160-style tube with three contact pads. The centre contact provides external gain control through a 180 kΩ EGAC circuit when used in a compatible three-contact device.

It can also be installed in a compatible standard two-contact device. In that configuration, the centre contact remains unconnected and the tube operates without user-adjustable manual gain, using its automatic brightness-control functions.

Please contact Deep Dark with your device manufacturer and model if you are unsure about compatibility.

Enquiries and availability

P45 white phosphor is offered for online ordering to approved destinations, subject to availability. For P43 green phosphor, or if the white option is unavailable, please contact Deep Dark with your required quantity, delivery country and intended end use. Supply remains subject to availability, destination and end-use checks, our terms and conditions, and any applicable export controls.
