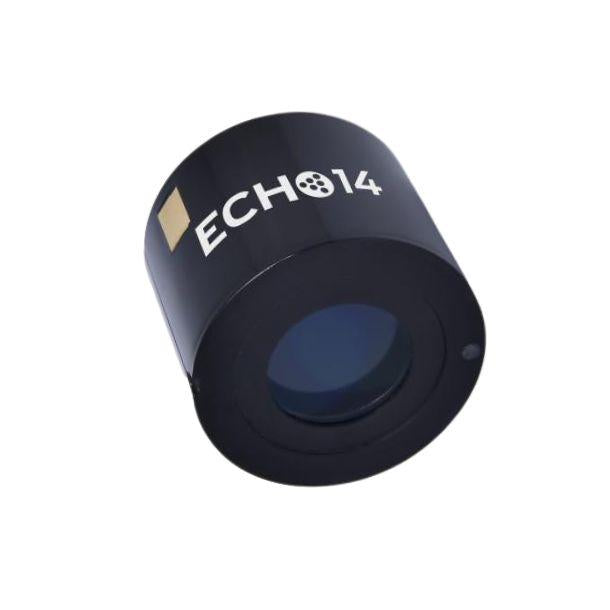

• Exosens ECHO14-series image intensifier with an 18 mm-format body and 14 mm active input window, on a white background
1 1

Exosens ECHO14 Image Intensifier Tube

Exosens ECHO14 Image Intensifier Tube

£1,554.00
£1,554.00
Sale Sold out
UK orders include UK VAT. Overseas orders exclude UK VAT; import charges may apply. Shipping calculated at checkout.
Tube format
Phosphor colour
Tube availability: If out of stock, you can still order. Allow up to four weeks for dispatch.
International orders: Import VAT, customs duty and clearance fees may be payable by the recipient. Duty-paid delivery may be available by prior agreement for larger orders. Learn more

ECHO14 is an 18 mm-format image intensifier with a 14 mm active input window (useful photocathode diameter) available with P43 green phosphor or P45 white phosphor.

External gain control (EGAC) is supplied as standard and is configured for a 180 kΩ control circuit.

Key specifications

  • Figure of Merit (FOM): 1400–1800
  • Signal-to-noise ratio: minimum 20
  • Centre resolution: minimum 57 lp/mm
  • Useful photocathode diameter: minimum 14 mm
  • Autogated
  • EGAC: 180 kΩ
  • P43 gain: 9,000–15,000 cd/m²/lx
  • P45 gain: 8,000–12,000 cd/m²/lx
  • Maximum mass: 80 g

Please check the drawing and specification sheet before ordering. Direct purchase is available only for delivery to countries on our approved shipping list.

Drawings and specification sheets

Phosphor Exosens type Drawing Specification
P43 green ZBG1577B 183-1577A2 184-8861A0
P45 white ZBW1577B 183-1577A2 184-8863A0

UK prices include VAT. For eligible international destinations, UK VAT is removed automatically; destination import VAT, duties and clearance charges may apply.

Tube format and gain control

The tube has the same external body size as an 18 mm-format tube, with a 14 mm active input window and three contact pads. The 14 mm measurement describes the useful photocathode diameter, not the external tube size. The centre contact provides external gain control through a 180 kΩ EGAC circuit when used in a compatible three-contact device.

It can also be installed in a compatible standard two-contact device. In that configuration, the centre contact remains unconnected and the tube operates without user-adjustable manual gain, using its automatic brightness-control functions.

Please contact Deep Dark with your device manufacturer and model if you are unsure about compatibility.

Availability and lead time: In-stock tubes are dispatched on our normal schedule. If a tube is not currently in stock, it remains available to order with a lead time of up to four weeks. We will confirm the expected dispatch date after your order.
