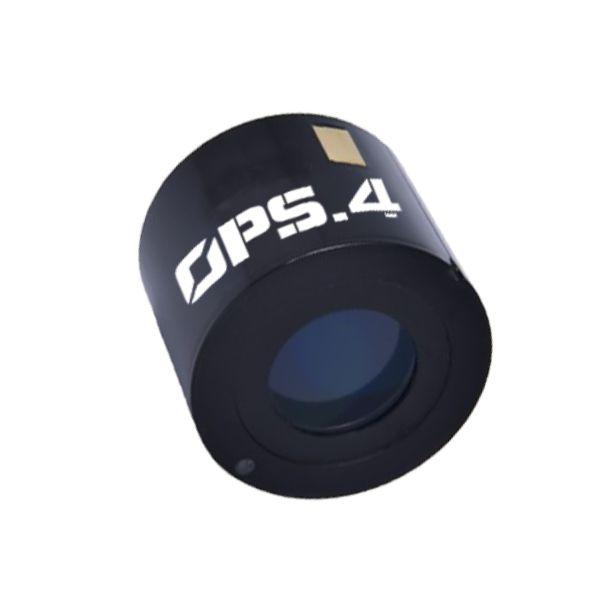

• Official Exosens OPS.4 image intensifier tube on a white background
1 1

Exosens OPS.4 Image Intensifier Tube

Exosens OPS.4 Image Intensifier Tube

£2,598.00
£2,598.00
Sale Sold out
UK orders include UK VAT. Overseas orders exclude UK VAT; import charges may apply. Shipping calculated at checkout.
Phosphor colour
Tube availability: If out of stock, you can still order. Allow up to four weeks for dispatch.
International orders: Import VAT, customs duty and clearance fees may be payable by the recipient. Duty-paid delivery may be available by prior agreement for larger orders. Learn more

Manufacturer: Exosens (formerly Photonis).

Exosens OPS.4 is a cost-effective image intensifier tube designed for dependable night-vision performance in training, situational-awareness and professional applications.

It is available from Deep Dark in an 18 mm 10160-style, three-contact EGAC format with either P43 green phosphor or P45 white phosphor. EGAC is supplied as standard, set to 180 kΩ.

Key specifications

  • Figure of merit (FOM): 1800 minimum
  • Signal-to-noise ratio: 26 minimum
  • Centre resolution: 60 lp/mm minimum
  • High-light resolution at 200 lux: 50 lp/mm minimum
  • P43 luminous gain: 11,000–16,000 cd/m²/lx
  • P45 luminous gain: 8,000–14,000 cd/m²/lx
  • Operational lifetime: 10,000 hours
  • EGAC: 180 kΩ as standard

Exosens OPS.4 range brochure

Download the current Exosens OPS.4 and OPS.4+ range brochure (PDF).

Manufacturer specification sheets

Each tube is supplied with its individual data sheet. Please contact Deep Dark if you require a particular minimum specification.

Tube format and gain control

This is an 18 mm 10160-style tube with three contact pads. The centre contact provides external gain control through a 180 kΩ EGAC circuit when used in a compatible three-contact device.

It can also be installed in a compatible standard two-contact device. In that configuration, the centre contact remains unconnected and the tube operates without user-adjustable manual gain, using its automatic brightness-control functions.

Please contact Deep Dark with your device manufacturer and model if you are unsure about compatibility.

Ordering and availability

OPS.4 may be purchased online for delivery to countries included in Deep Dark’s approved shipping list. Orders remain subject to availability, destination and end-use checks, our terms and conditions, and any applicable export controls.

Availability and lead time: In-stock tubes are dispatched on our normal schedule. If a tube is not currently in stock, it remains available to order with a lead time of up to four weeks. We will confirm the expected dispatch date after your order.

View full details
